Lesson 21: Advanced Embeddings & Chunking - Production RAG Engineering
[A] Today’s Build
We’re building an advanced embeddings and chunking laboratory that transforms how your VAIA handles document processing:
Multi-model embedding comparison engine testing Sentence Transformers, Gemini embeddings, and lightweight models with real-time performance metrics
Semantic chunking system that preserves meaning boundaries rather than arbitrary character counts
Recursive chunking pipeline with configurable hierarchies for multi-level document understanding
Chunking strategy analyzer providing visual comparison of chunk quality, overlap, and retrieval effectiveness
Building on L20’s ChromaDB foundation, we extend vector storage with intelligent preprocessing that dramatically improves retrieval quality. This creates the optimized document representations that L22’s reranking models will refine further.
[B] Architecture Context
L21 sits at the critical juncture between storage (L20) and retrieval optimization (L22) in our RAG implementation module. While L20 established vector storage infrastructure, we now engineer the quality of what gets stored.
This lesson integrates with L20’s ChromaDB collections by providing multiple embedding options and chunking strategies that populate them with semantically coherent segments. The comparison framework we build becomes essential for L22, where reranking models require well-chunked inputs to deliver meaningful relevance improvements.
Within the 90-lesson curriculum, this represents the shift from infrastructure setup to intelligent preprocessing—a pattern that separates production VAIAs from academic implementations.

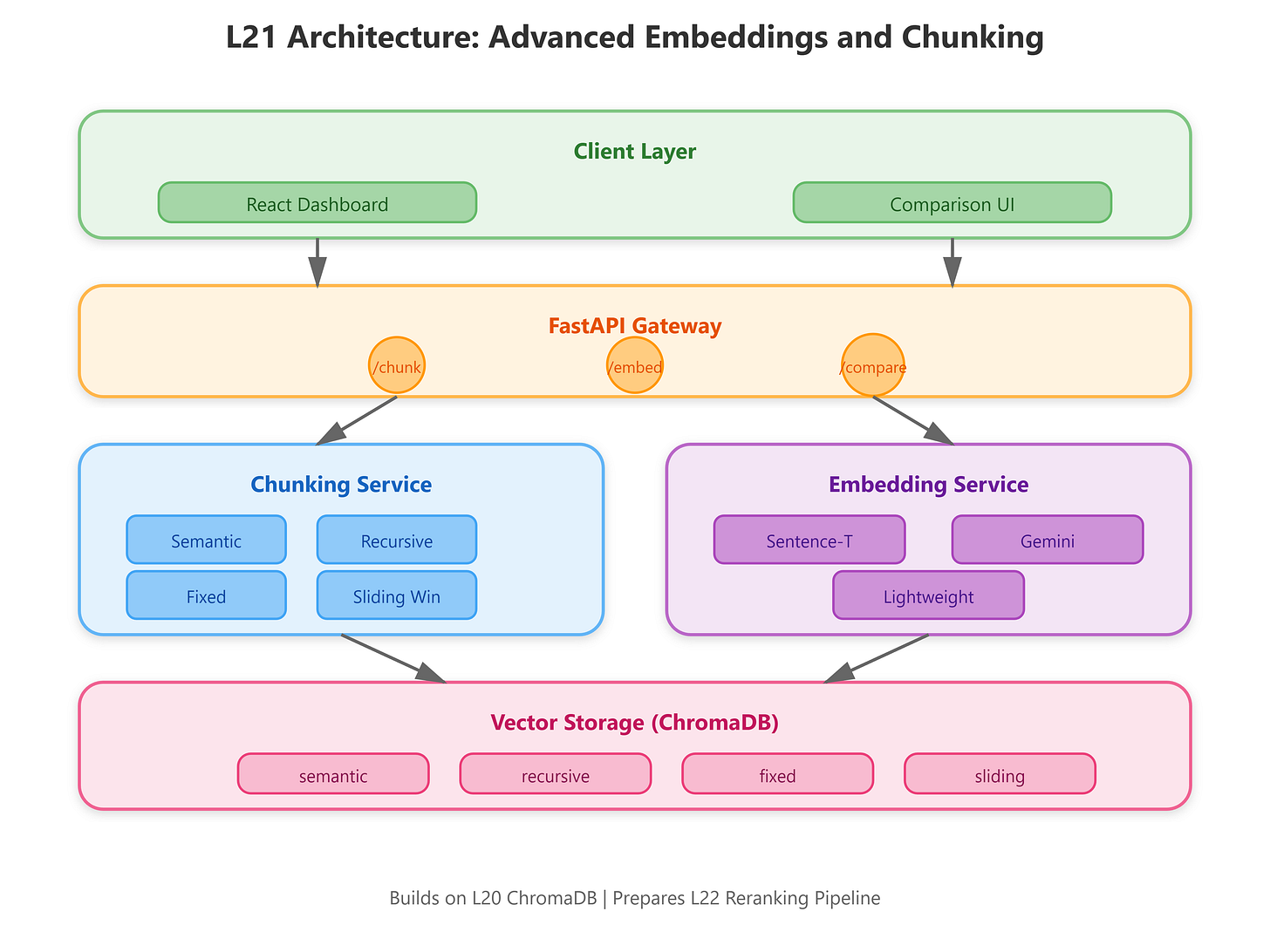

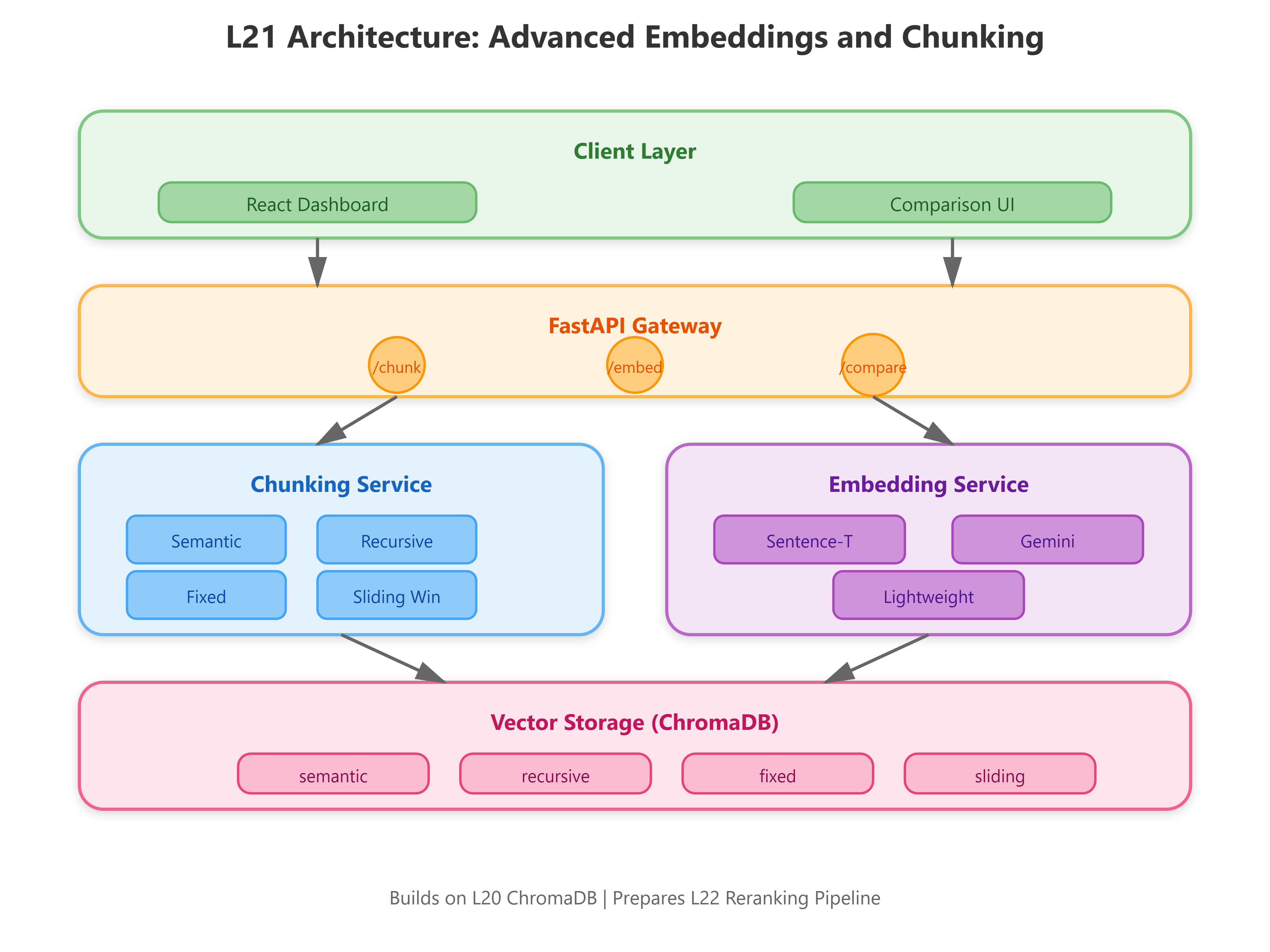

Our architecture extends L20’s ChromaDB with a preprocessing pipeline that tests chunking strategies before storage:
