Advanced Architectures for Vertical AI Agents

Lesson 94–95: Capstone Project — VAIA Submission & Defense

Jul 27, 2026

∙ Paid

Highlights

The final lesson in the 90-lesson VAIA curriculum transforms your completed system into a defensible, auditable, production-grade artifact. You build a submission package that a technical review board can run, inspect, and score — and you prepare a live defense demonstrating operational excellence under adversarial questioning.

What we build:

A SubmissionPackageBuilder that assembles all lesson exports (L1–L93) into a SHA-256 hash-chained archive with integrity manifests
A DefenseReadinessReport auto-generated from runtime metrics, evaluation gate logs, and compliance audit store entries
A LiveDemoHarness — a React dashboard wired to your running VAIA backend that executes deterministic scenario playbooks during the live defense
A ProductionReadinessAttestation signed by the evaluation gate (faithfulness ≥ 0.85, latency p99 ≤ 2 s, zero critical compliance violations)
A PeerReviewScorecard framework for structured technical peer assessment

Connection to L91–L93

L91–L93 produced your fully integrated VAIA: orchestrated agents, MLOps pipeline, compliance audit store (append-only, hash-chained SQLite WAL), and an evaluation gate that blocks deployment until thresholds pass. Every component you built there is an input here — not as source files to copy, but as live services the submission package queries, validates, and packages.

The CapstoneProjectManifest from L90, instantiated in L91–L93 as a running system, now becomes the root hash of the submission package’s integrity chain. Nothing is re-implemented; everything is verified and documented.

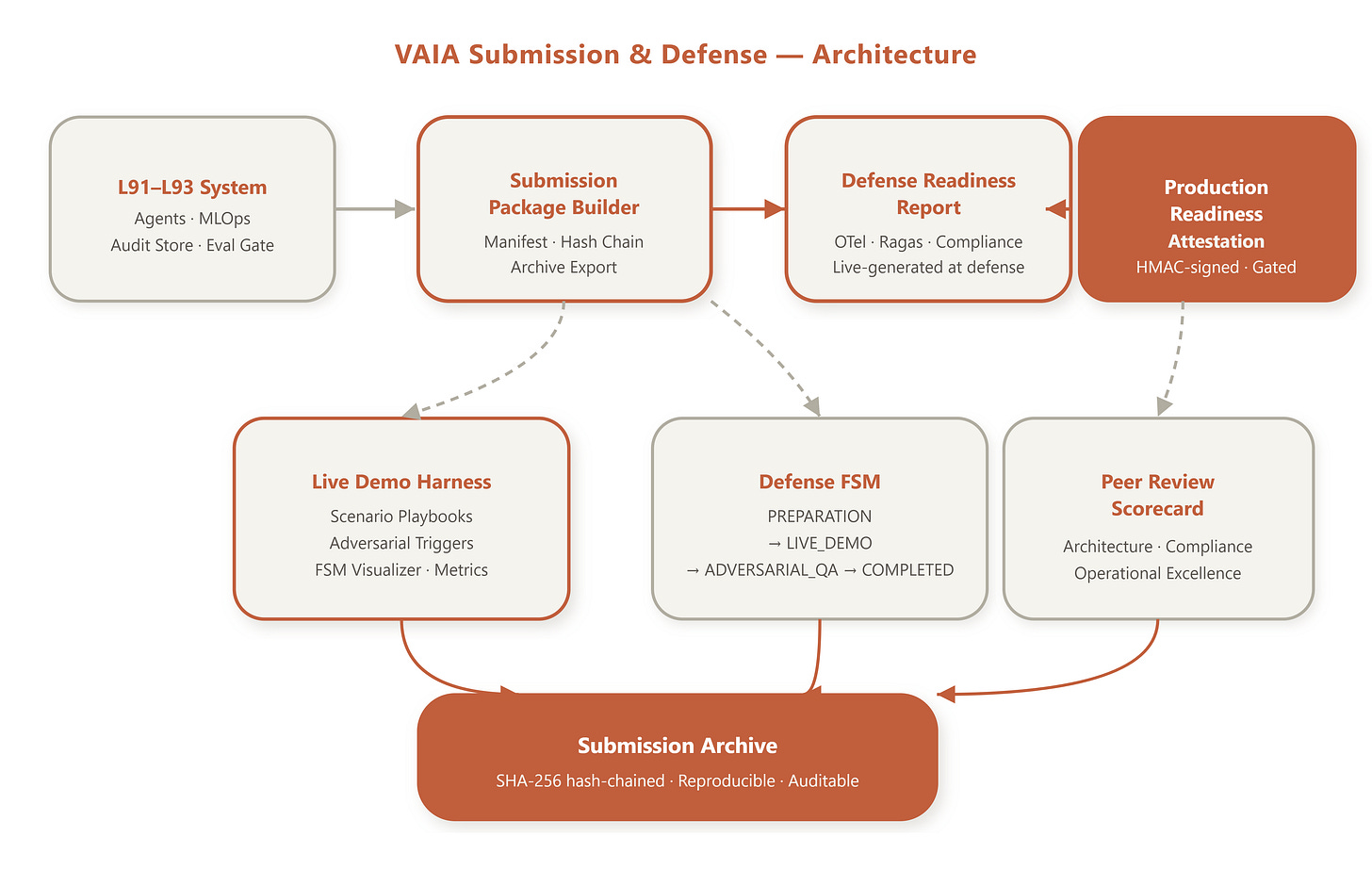

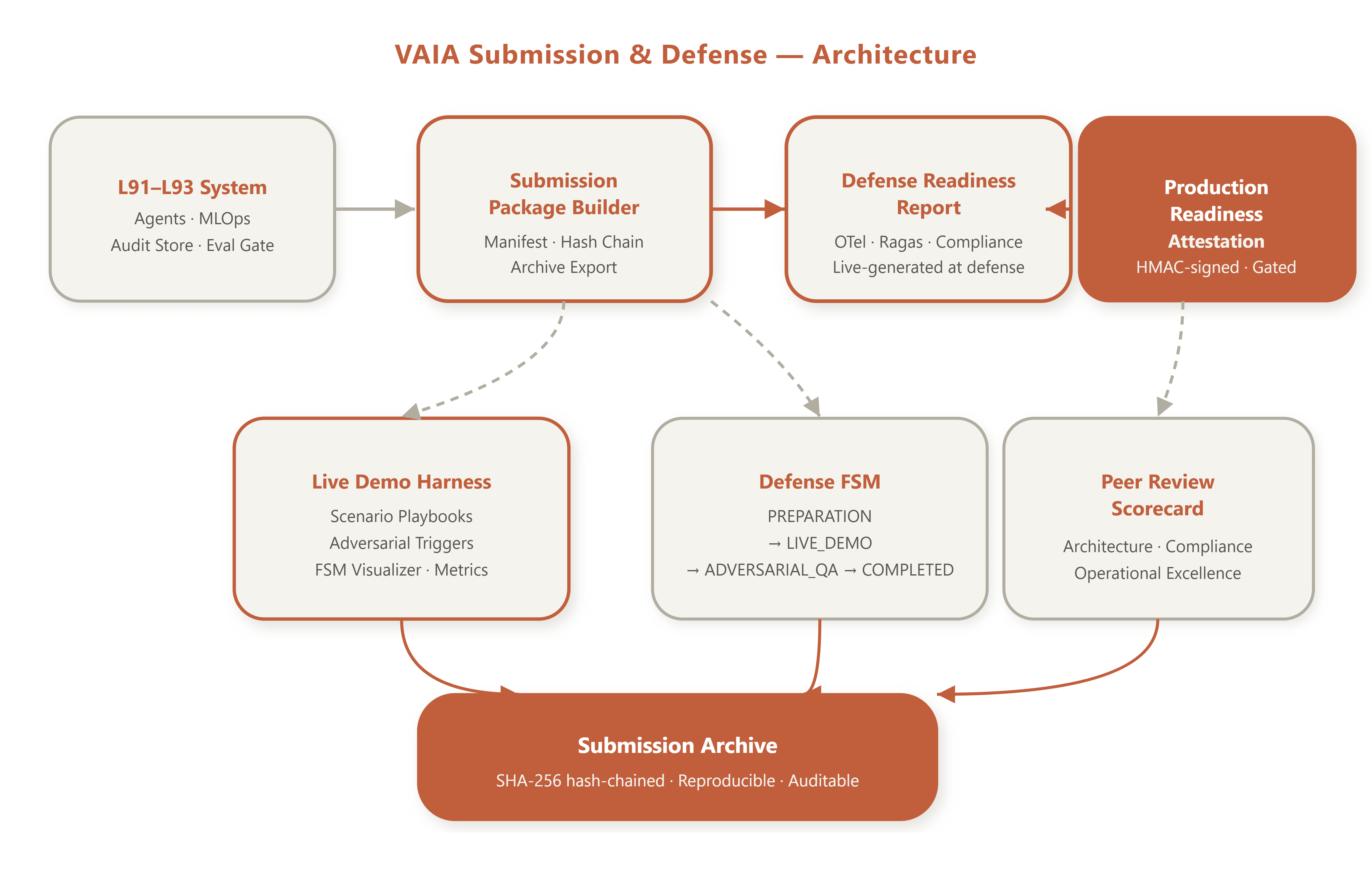

Architecture Context

This lesson sits at the apex of the dependency graph spanning all 90 lessons. The submission package is not a zip of source files — it is a reproducible artifact: a Docker Compose stack that, when started on a clean machine, boots the full VAIA, runs the integration test suite, regenerates the DefenseReadinessReport, and serves the LiveDemoHarness on port 3000.

The defense itself follows a three-phase FSM: PREPARATION → LIVE_DEMO → ADVERSARIAL_QA. State transitions are gated by the peer review panel’s explicit approval signals, logged to the audit store, and included in the final submission archive.
